Products > PNEUMATIC AUTOMATION > HIGH-TECH > LOCKS > SERIES NFZ 160/200

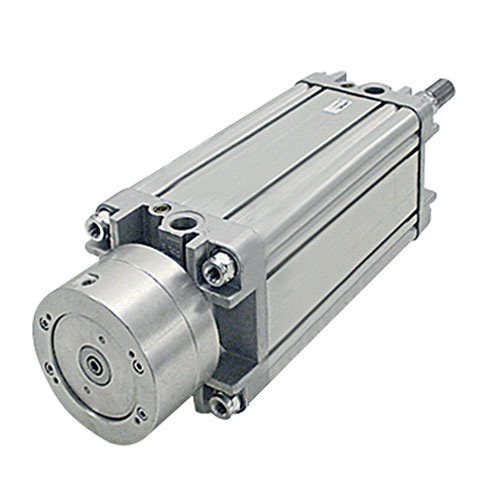

Series NFZ 160/200
ISO 15552 Ø 160-200 mm cylinders with locking unit integrated
NFZ 160/200
Browse catalogue Browse catalogue
Catalogue Download NFZ 160/200 Catalogue Download

2D-3D CAD NFZ 160/200 2D-3D CAD
TECHNICAL CHARACTERISTICS
Ambient temperature (°C) -10 ÷ +70
Fluid filtered air 30 μm
Working pressure (bar) 3 ÷ 10
Release pressure (bar) ≥ 3
Bores (mm) Ø 160 - 200
Stroke (mm) Max 1200
Repeatability and intervention speed high (16 m/s)
Magnetic standard (magnetic switch DF-...series)

- Holding force of the rod, without axial backlash ≥ 3 times the thrust of the cylinder with 6 bar air supply
- The locking unit blocks if there is no signal and/or air supply
